centos7负载均衡配置
首页->学习资料->其它->开发环境搭建 关键词: 发布时间:2018-11-14 16:02:48 浏览次数:1213

现弄了三个虚拟机,ip分别为

从1:192.168.1.101

从2:192.168.1.102

主:192.168.1.104主服务器请求转发到从1,从2

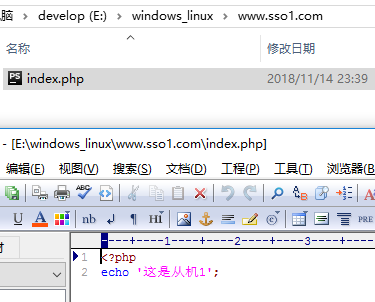

通过文件共享,在windows下弄了两个目录,当做从站的目录


其中均只有一个index.php文件:

sso1输出的是:这是从机1

sso2输出的是:这是从机2



第一步:

三台服务器上均修改/etc/hosts,在其中加入一行:

127.0.0.1 user.yunindex.com


第二步,主服务器站点配置:

upstream sso{
        server 192.168.1.101:80;
        server 192.168.1.102:80;
}
server {
    listen       80;
    server_name  user.yunindex.com;

    location / {
	proxy_pass http://sso;
	proxy_set_header Host $host;
    }
}


第三步,从服务器配置

从1:

server {
    listen       80;
    server_name  user.yunindex.com;

    location / {
        root   /share/www.sso1.com;
        index  index.php index.html index.htm;
	try_files $uri $uri/ /index.php?$query_string;
    }

    location ~ \.php$ {
        root           html;
        fastcgi_pass   127.0.0.1:9000;
        fastcgi_index  index.php;
        fastcgi_param  SCRIPT_FILENAME  /share/www.sso1.com$fastcgi_script_name;
        include        fastcgi_params;
    }

    location ~ /\.ht {
        deny  all;
    }
}

从2将上面的sso1改为sso2即可


重启nginx:service nginx restart

如果访问不了站点,记得关闭防火墙:service firewalld stop

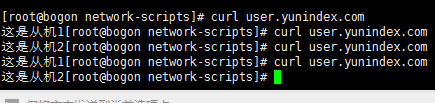

第4步测试:

由于两台机器的权重是一样的,可以看到访问被平均分配到两台机器上了



奇怪的是,根据上面的配置,在浏览器中效果不一样:

在ie中是1:1分配的,在chrome中则经常被分配到同一台上,刷新很快则有可能分配到第二台上;

关于ip_hash方法的说明:

https://blog.csdn.net/sd4493091/article/details/54894479?utm_source=itdadao&utm_medium=referral
